2K 4MP USB Camera Feature:

*F5253 4.0MP sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate MJPG– deliver 30 fps in 2560x1440 resolution, 30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Android, Linux, Windows , MAC, SP2 or above.
*Camera with UVC, Drive-free.
*USB Cable:1.5M USB Cable

------------------------------------------------------------------------------

------------------------------------------------------------------------------

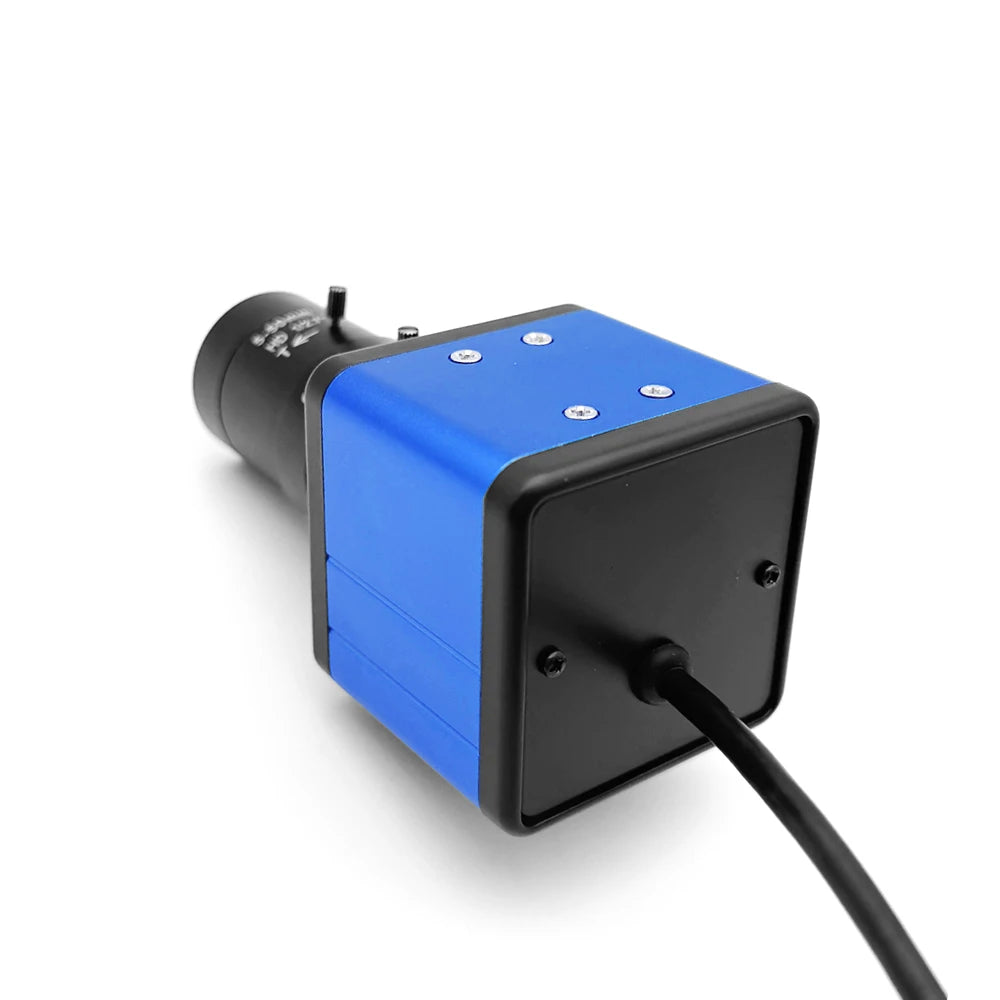

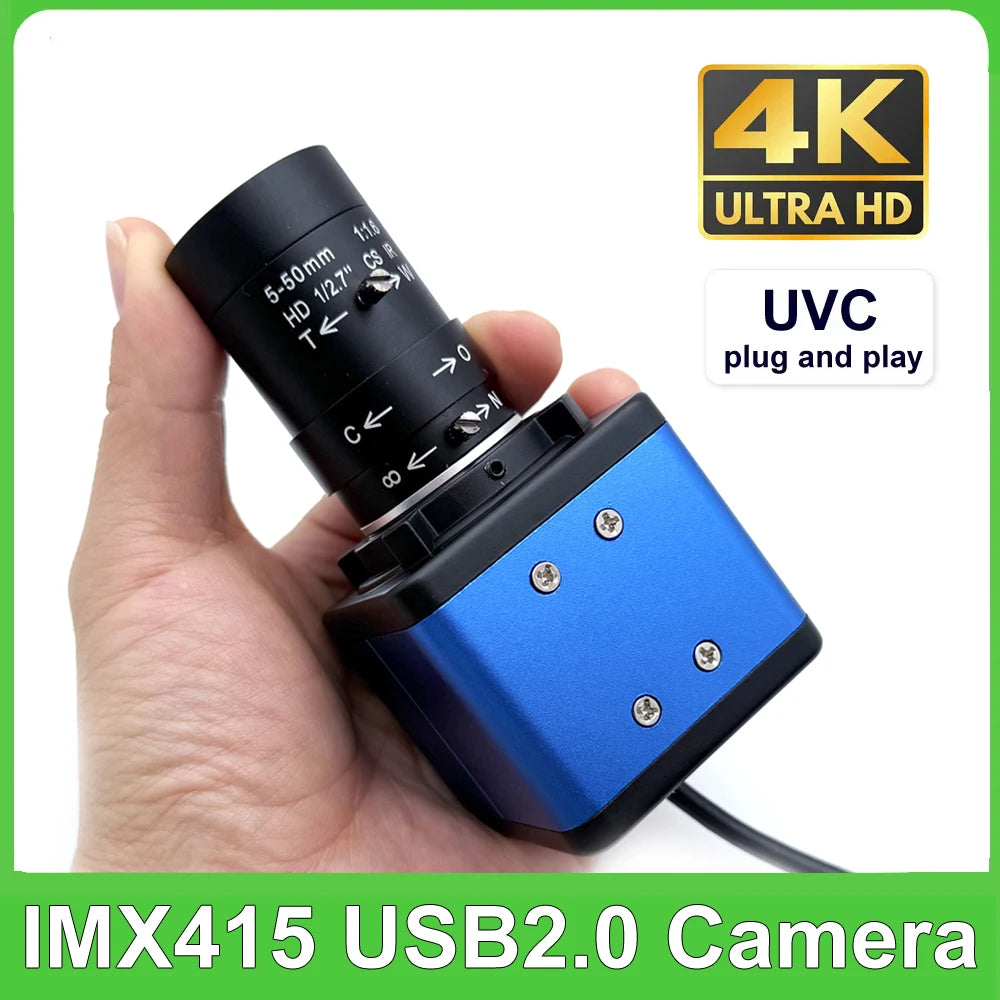

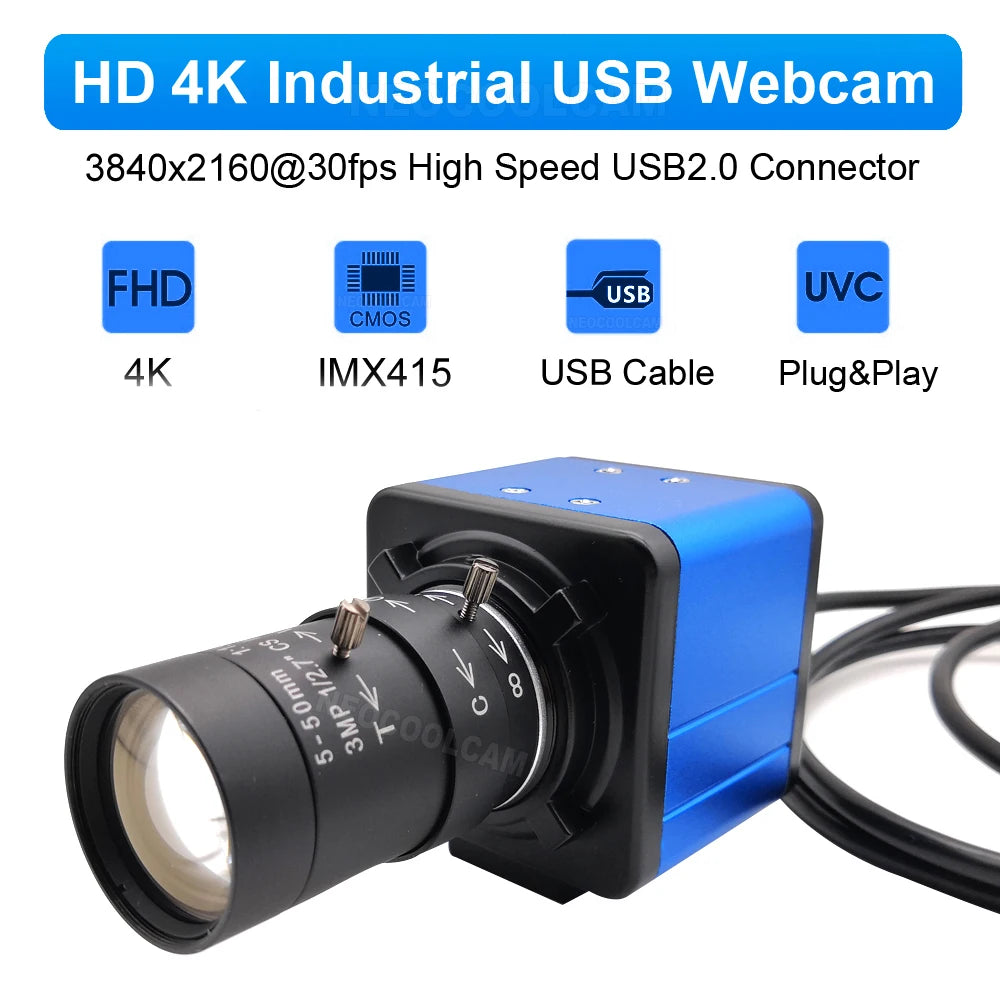

4K 8MP IMX415 USB Camera:

Sensor: IMX415 (1/2.8” )
Max Resolution: 3840(H) *2160 (V)
Sensitivity: 1000mV/Lux-sec
Image area: 6100µmx4524µm
Picture format MJPEG / YUY2（YUYV）
Resolution & FPS
MJPEG
3840x2160 30fps 2560x1440 30fps
1920x1080 60fps 1600x896 30fps
1280x720 30fps 1024x576 30fps
800x600 30fps 800x480 30fps
640x480 30fps 640x360 30fps
424x240 30fps 352x288 30fps
YUY2
3840x2160 1fps 2560x1440 1fps
1920x1080 5fps 1600x896 10fps
1280x720 30fps 1024x576 30fps
800x600 30fps 800x480 30fps
640x480 30fps 640x360 30fps
424x240 30fps 352X288 30fps

Center Definition 1000LW/PH (Center)
S/N (Signal Noise Ratio) 26dB
Sensitivity 0.65V/lux-sec@550nm
Low illumination 0.2lux
Shutter Electronic rolling shutter / Frame exposure
Interface USB2.0 High Speed
AEC Support
AEB Support
AGC Support
Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens Size: 2.8-12mm Manual Varifocus Lens/4mm //6mm fixed Lens (Optional)
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Power Supply & Connector USB BUS POWER 4P-2.0mm socket
Power DC5V
Current 200mA
PCB Board Size 38mm × 38mm
Storage Temperature -20°C to 65°C
Working Temperature 0°C to 60°C
USB Cable: 1M
Operating System Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
